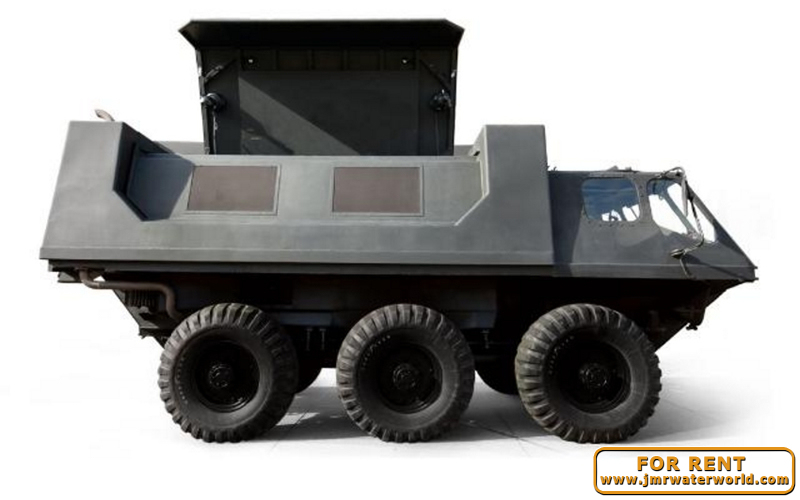

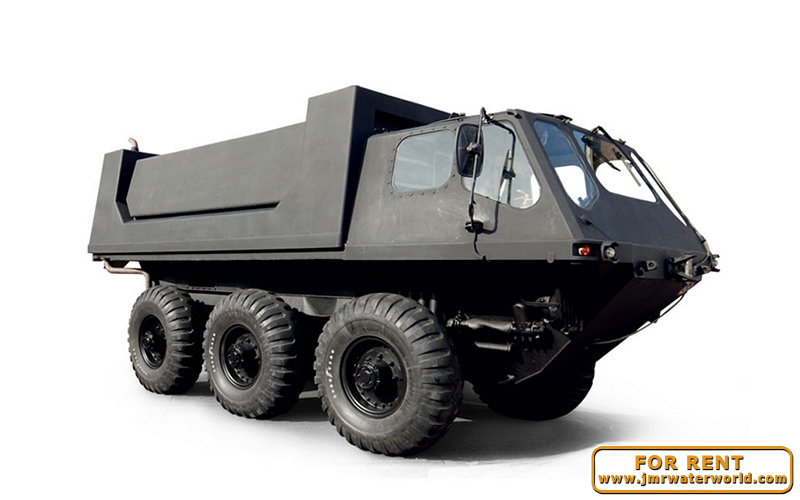

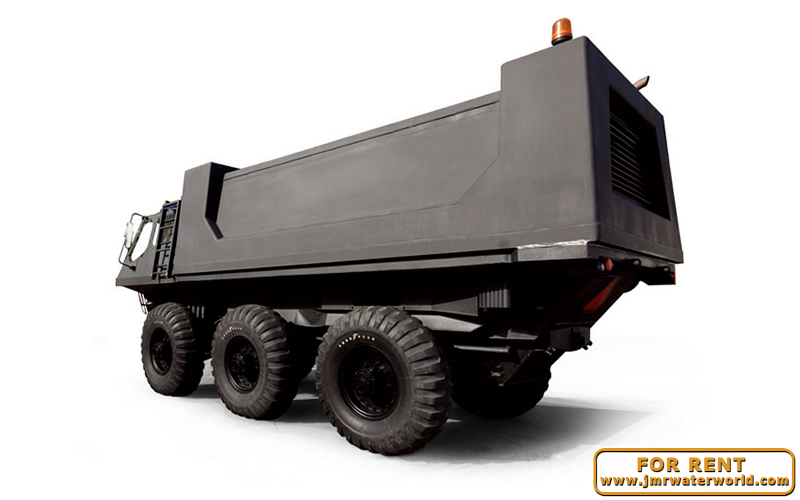

Alvis Stalwart FV622, amphibious vehicle. |
| |
Technique |
|
| |
|
Perfect for the adventurer in all of us, the amphibious can carry a 6000W sound system, a full equiped DJ booth, light effects, smoke machines and a small army of promo-girls.
Success guaranteed! |
| |
|
| |
|
| |
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
Specifications Alvis Stalwart FV622: |
| |
|
| Length |
: |
6400 mm |
| Width overall |
: |
2600 mm |
| Width over tires |
: |
2400 mm |
| Height to top of cab |
: |
2400 mm |
| Height to top of tarpaulin |
: |
2640 mm |
| Height to loadplatform |
: |
1530 mm |
| Wheelbase front/centre |
: |
1524 mm |
| Wheelbase centre/rear |
: |
1524 mm |
| Track |
: |
2060 mm |
| Ground clearence, laden |
: |
400 mm |
| |
|
|
Weight laden
|
: |
14,429 |
| Weight unladen |
: |
8,890 kg |
| Bridge classification |
: |
14 |
| |
|
|
Maximum speed, on road
|
: |
63 km/h |
| Average speed, off road |
: |
32 km/h |
| Maximum speed, in water |
: |
6.5 km/h |
| Static trust |
: |
998 kgf |
| |
|
|
Fuel consumption, on road
|
: |
0.71 liter/km |
| Maximum range, on road |
: |
515-483 km |
| |
|
|
Turning circle
|
: |
16.76 m |
| Vertical obstacle |
: |
450 mm |
| Ditch crossing (trench) |
: |
1520 mm |
| Gradient maximum |
: |
60%
|
| Gradient stop and restart |
: |
33% |
| Maximum side overturn gradient |
: |
40% |
| Approach angle laden |
: |
42.30 deg |
| Approach angle unladen |
: |
38.20 deg |
| Departure angle laden |
: |
29 deg |
| Departure angle unladen |
: |
36 deg |
| Capacity maximum load |
: |
5000 kg or 24 cubic meters |
| Maximum towed load |
: |
10,000 kg |
| |
|
|
|
| |
|
|
| |
|
|
|
|
